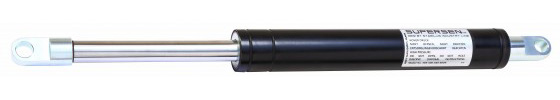

Nitrogen cylinder Stabilus Industrial LINE-LIFT-O-MAT

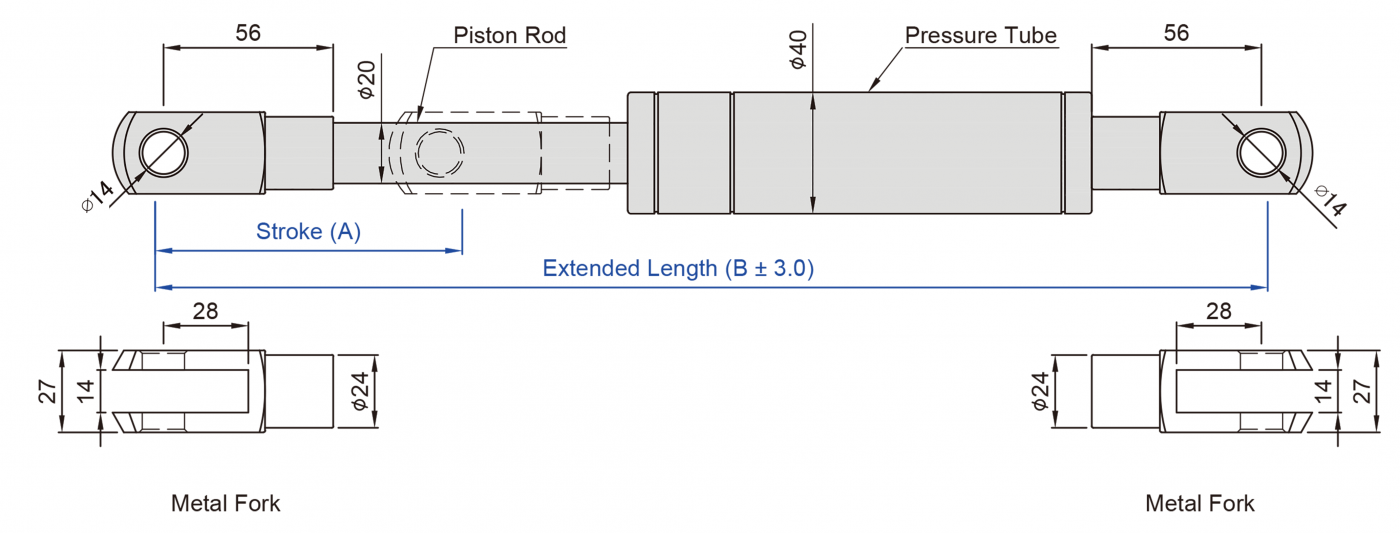

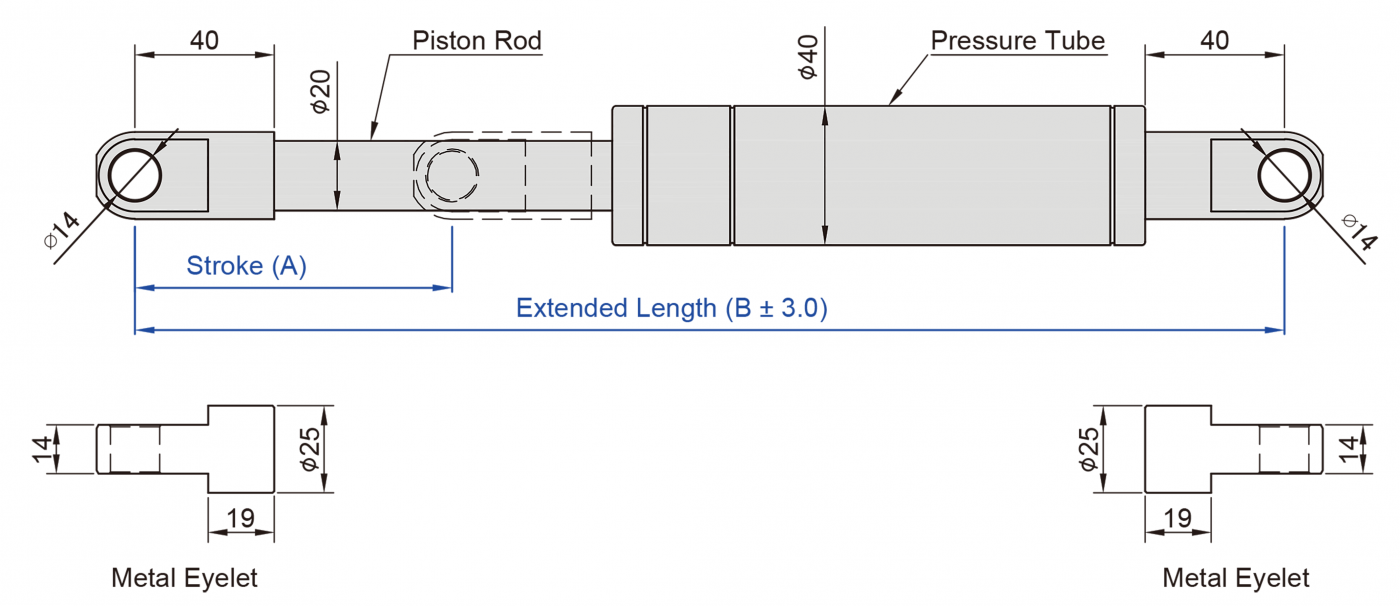

Product specifications: Axis end outer diameter 20mm/Outer tube end outer diameter 40mm

Material: General carbon steel with hard chrome axis/Operating temperature:- 30℃~80℃

Surface treatment: Axis: Hard chrome/Outer tube: Black baked paint

Length unit: Mm/pressure gauge: 1kg=9.8 (N) Newton=2.2lbs pound

Safety precautions for special high-pressure nitrogen cylinders:

1. Pay attention to transportation safety

2. Special protective packaging for shipment

3. It is recommended to use wooden boxes for binding when exporting

4. Packaging fee is calculated separately

Inquiry and ordering instructions:

※1.When ordering or inquiring about nitrogen cylinders, please provide the product part number and required pressure F1: (N Newton or kg kg) Product pressure customization

※2. When ordering or inquiring, please clearly state the requirements A. Quantity B. Operating environment C. Purpose of use such as maintenance or design for new institutions

Installation precautions:

1.When the nitrogen cylinder is installed on the mechanism door panel and deployed to the highest point, it is recommended to install the nitrogen cylinder with the pipe end facing upwards and the axis end facing downwards, so that the door panel has a buffering function when deployed to the end

2.When compressing the nitrogen cylinder, at least 5-10mm should be reserved for effective stroke operation to prevent damage caused by the impact of the axial end joint on the nitrogen cylinder body

3.When fixing the nitrogen cylinder to the upper and lower support points, it is necessary to keep it as vertical as possible to avoid installation deviation that may affect its service life

4. For other details, please refer to the installation precautions for nitrogen cylinders in our company's website product technical information

5. For bolts or sheet metal fittings that fix the two ends of the nitrogen cylinder to the mechanism or door panel, please refer to our company's website (nitrogen cylinder specific bolts and fittings) for selection. For special requirements, please contact our business personnel

The STABILUS INDUSTRIAL LINE-LIFT-O-MAT free type pressure rod has a nitrogen cylinder with support and thrust functions, but does not have positioning function. Internally filled with nitrogen gas at an appropriate pressure, the pressure rod generates a reaction force during compression. This reaction force can be used to support or counteract the heavy load on the pressure rod, and the damping effect is generated by the internal oil volume and piston hole size of the cylinder body, which promotes the smooth movement of the pressure rod (nitrogen cylinder) during the extension or compression process. It is generally recommended to install a pressure rod (nitrogen cylinder) with the axis facing downwards, which can provide a buffering effect when the nitrogen cylinder is extended to the end and protect the designed mechanism. Therefore, the STABILUS LIFT-O-MAT free type pressure rod is widely used in automation equipment, such as sheet metal industrial enclosures, car engine covers and rear compartments, furniture and kitchen cabinets, industrial machinery, electronic equipment, medical equipment and other mechanisms for lifting doors and covers. For the relevant test reports of STABILUS and SUPERSEN products, please refer to our company's website "Product Technical Information" on your own.
