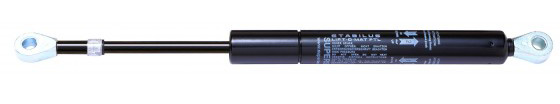

Compression locking nitrogen cylinder STABILUS LIFT-O-MAT-PTL

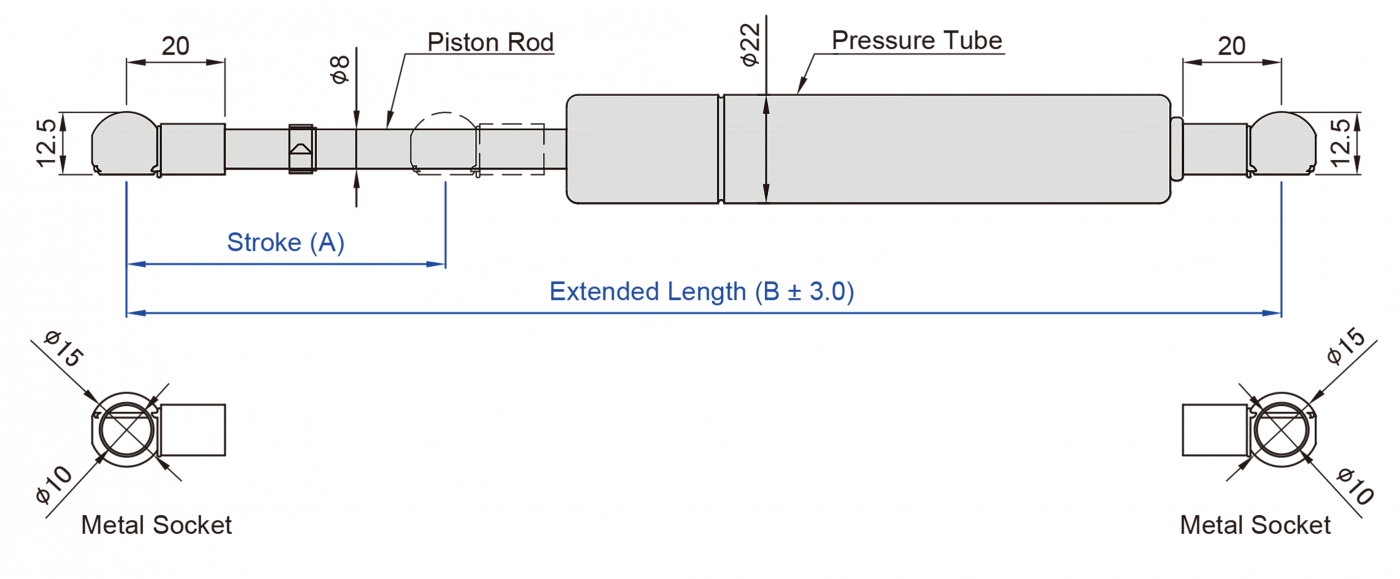

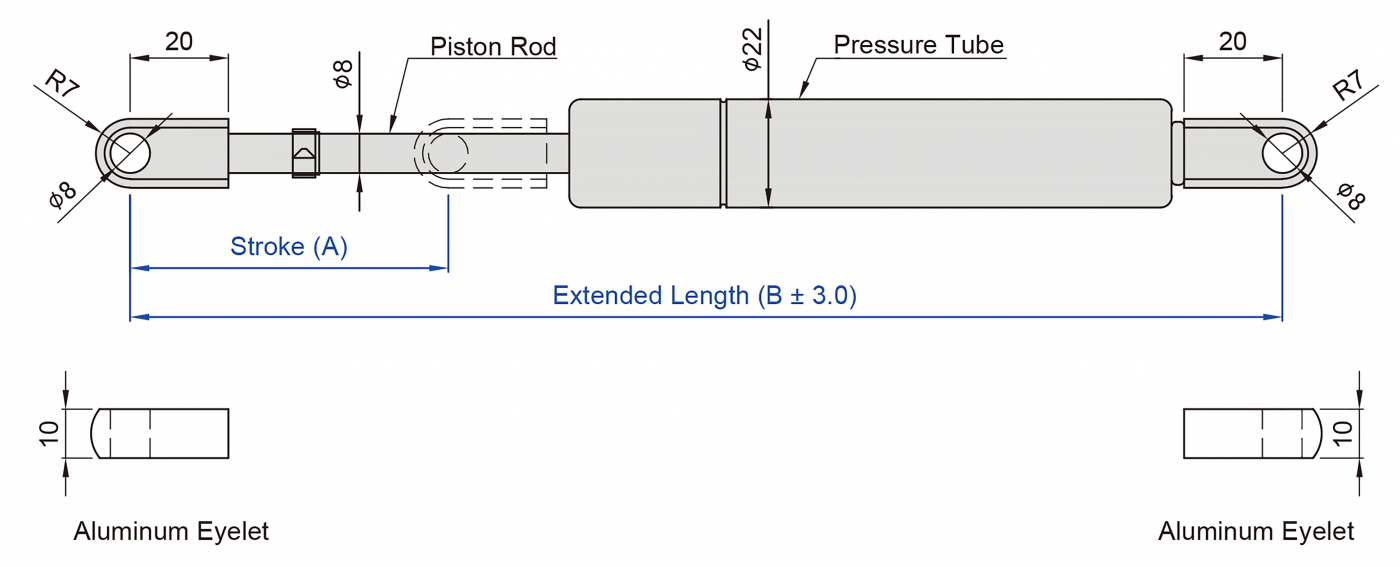

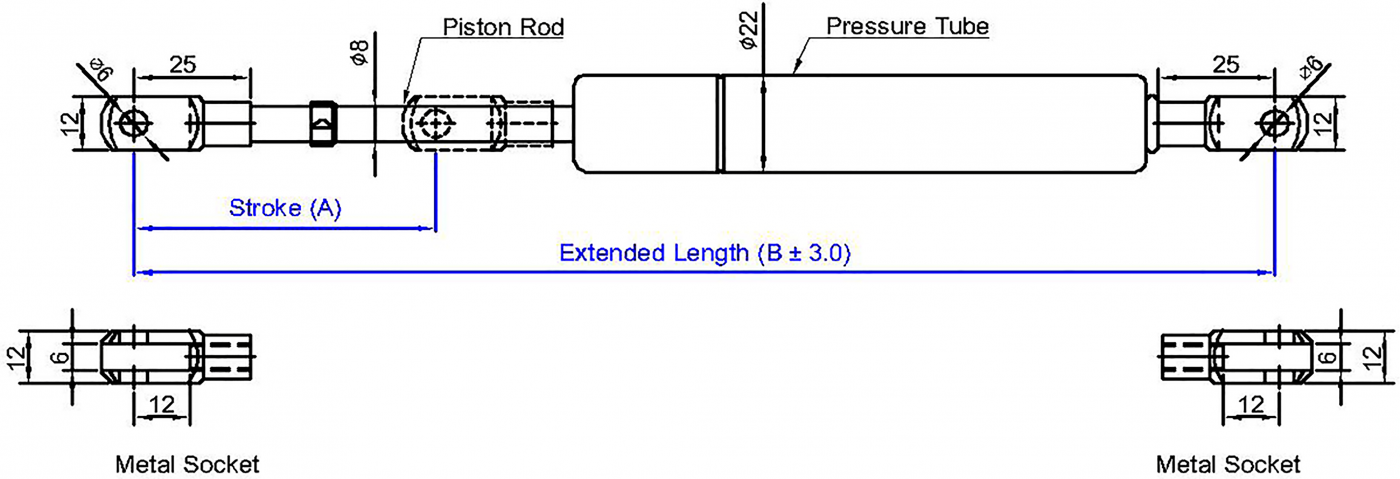

Product specifications: Axis end outer diameter 8mm/Outer tube end outer diameter 22mm

Material: General carbon steel nitriding axis/Operating temperature:- 15°C~60°C

Surface treatment: Axis: Nitriding dyed black/Outer tube: Black baked paint

Length unit: mm/Pressure unit: 1 kg=9.8 (N) Newton=2.2 lbs pounds

Inquiry and ordering instructions:

1.When ordering or inquiring about nitrogen cylinders, please inform us of the product part number and required pressure F1: (N Newton or kg kg) Product pressure customization

2. When ordering or inquiring, please clearly state your requirements: a. quantity b. usage environment c. purpose of use, such as maintenance or new institution design

Installation precautions:

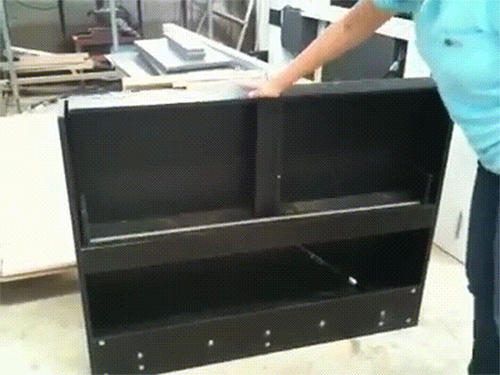

1.When the nitrogen cylinder is installed on the mechanism door panel and deployed to the highest point, it is recommended to install the nitrogen cylinder with the pipe end facing upwards and the axis end facing downwards, so that the door panel has a buffering function when deployed to the end

2.When compressing the nitrogen cylinder, at least 5-10mm should be reserved for effective stroke operation to prevent damage caused by the impact of the axial end joint on the nitrogen cylinder body

3.When fixing the nitrogen cylinder to the upper and lower support points, it is necessary to keep it as vertical as possible to avoid installation deviation that may affect its service life

4. For other details, please refer to the installation precautions for nitrogen cylinders in our company's website product technical information

5. For bolts or sheet metal fittings that fix the two ends of the nitrogen cylinder to the mechanism or door panel, please refer to our company's website (nitrogen cylinder specific bolts and fittings) for selection. For special requirements, please contact our business personnel

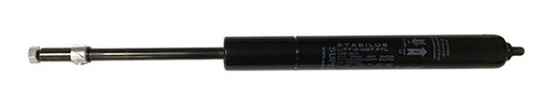

STABILUS LIFT-O-MAT PTL is a hydraulic damping nitrogen cylinder with an additional mechanical lock in the compressed position. The principle is similar to that of a ballpoint pen. By gently pushing the nitrogen cylinder, the lock can be released, and the nitrogen cylinder will automatically expand with damping.

In addition to thrust assist function, LIFT-O-MAT PTL also has end locking function, without the need to install additional locking components. Meanwhile, it is easy and convenient to use. Compression locked nitrogen cylinders are used for various applications, especially in modern designers and functional furniture.

Product Features:

·Locked in compressed position

·End locking, no need for additional locking components

·Using a principle similar to a ballpoint pen, it is easy to release the lock and operate conveniently
