Compression type hydraulic damping rod STABILUS STAB-O-SHOC

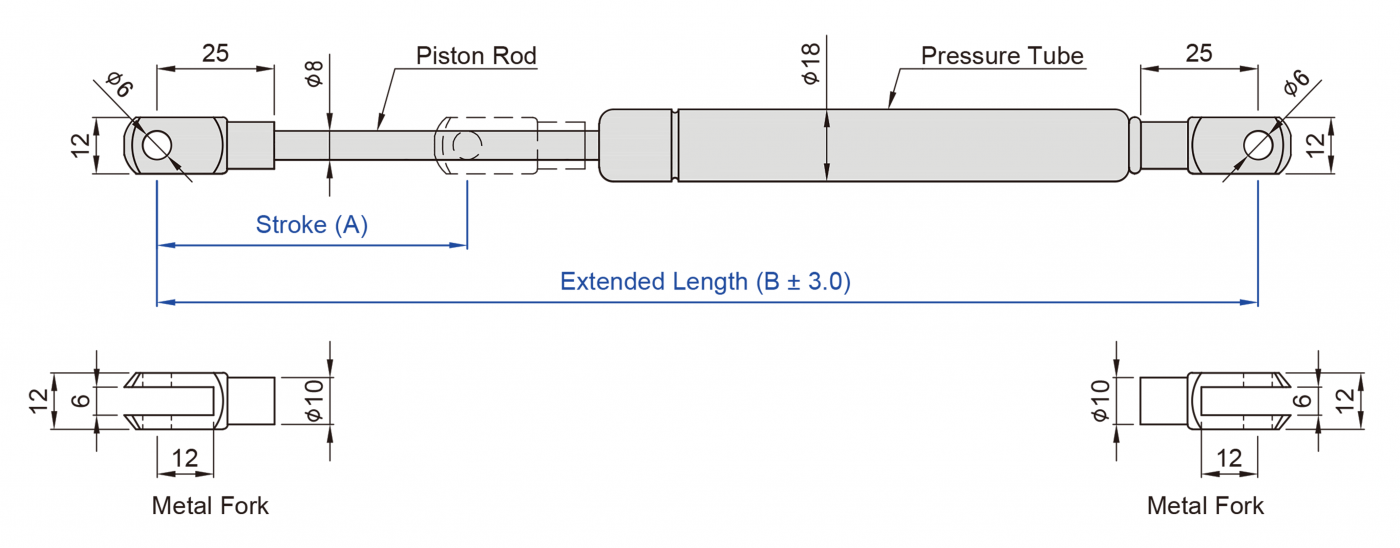

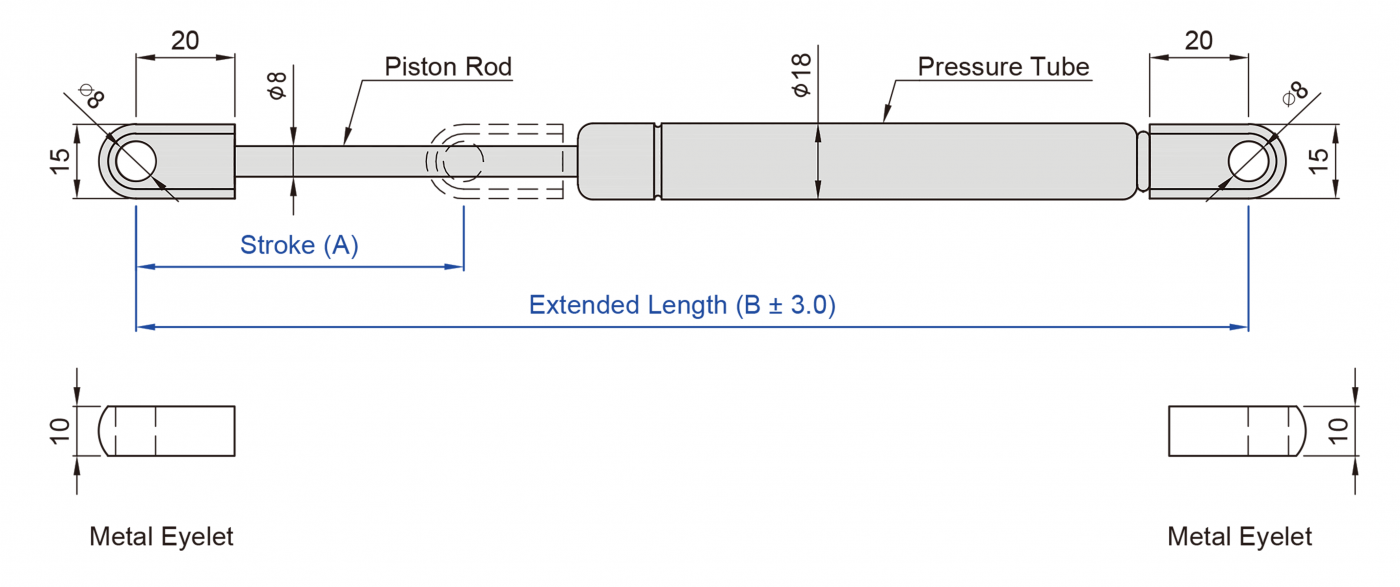

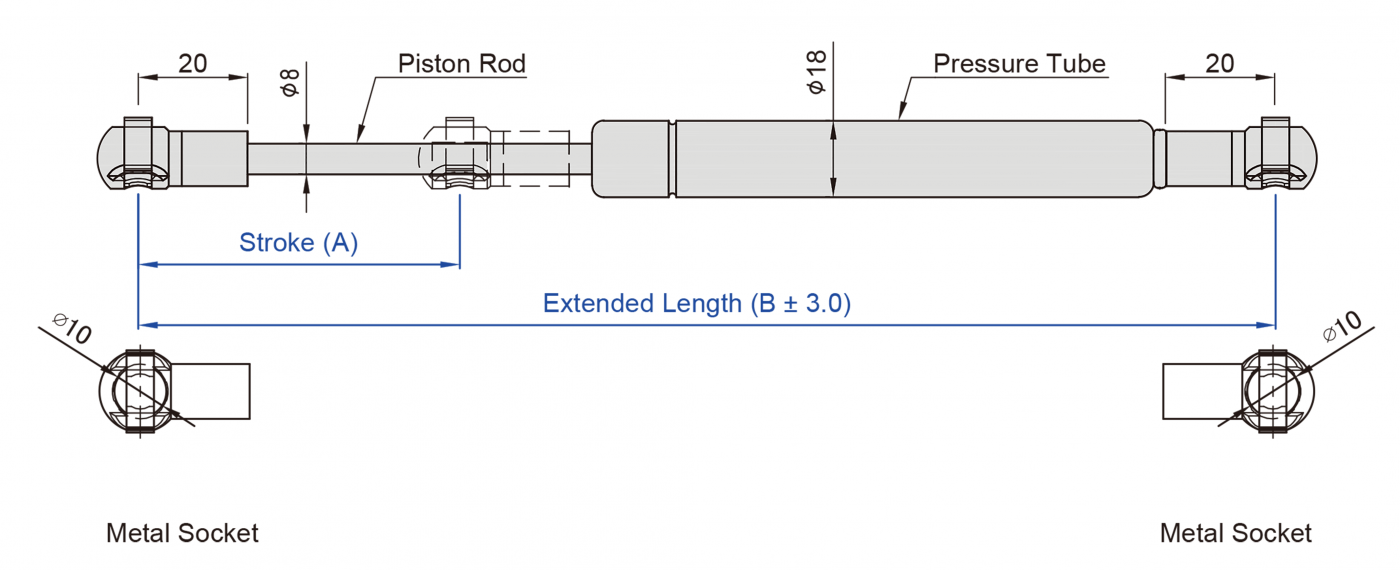

Product specifications: Axis end outer diameter 8mm/Outer tube end outer diameter 18mm

Material: General carbon steel nitriding axis/Operating temperature:- 30°C~80°C

Surface treatment: Axis: Nitriding dyed black/Outer tube: Black baked paint

Length unit: mm/Pressure unit: 1 kg=9.8 (N) Newton=2.2 lbs pounds

Inquiry and ordering instructions:

1. Our hydraulic rods are generally ordered in specifications. For inquiries about hydraulic damping rods, please inform us of the part number of our product

2. When ordering or inquiring, please clearly state the requirements A. Quantity B. Operating environment C. Purpose of use such as maintenance or design for new institutions

3. Our company can also accept customer commissioned development for special OEM product specifications

Installation precautions:

1.When designing and installing hydraulic damping rods, designers need to take into account factors such as the weight and damping speed of the mechanism

The damping force of the STABILUS hydraulic specification product is at a speed of 100mm/S In the vertical state of the hydraulic cylinder

2. The installation of hydraulic damping has no directionality depending on the actual installation effect. Generally, it is recommended to install hydraulic rods with the pipe end facing upwards and the axis end facing downwards

3.When compressing the nitrogen cylinder, at least 5-10mm should be reserved for effective stroke operation to prevent damage caused by the impact of the axial end joint on the nitrogen cylinder body

4. When fixing the nitrogen cylinder at the upper and lower supports, it is necessary to keep it as vertical as possible to avoid installation deviation that may affect its service life

5. For other details, please refer to the installation precautions for nitrogen cylinders in our company's website product technical information

6. For bolts or sheet metal fittings that fix the two ends of the nitrogen cylinder to the mechanism or door panel, please refer to our company's website (nitrogen cylinder specific bolts and fittings) for selection. For special requirements, please contact our business personnel

STABILUS standard HD18C compression hydraulic damping is a nitrogen free hydraulic compression damping rod with compression direction damping function. The vertical installation of the damping rod has the best effect and damping force. Damping rods can provide damping effects in various application designs. Typical application areas include automotive design, process technology manufacturing, gaming consoles, game consoles, and other industrial applications.

Product Features:

·HD18C compression hydraulic damping rod is suitable for low to medium loads

·Mechanism door slowly lowers and closes

·Damping closing door panel

·Reduce the burden on the hinge mechanism

·Slow descent door panel maintains safety

Product Technical Specifications:

1) Hydrauilc stroke
2) Mechanical stroke
3) Test speed 100 mm/s
4) Piston rod down, piston flow only in oil = hydraulic stroke, A
5) Piston rod up, maximum possible stroke in oil and air chamer = mechanical stroke,A*

FZ : Blocking force in traction direction (N)
FD : Blocking force in compression direction (N)
