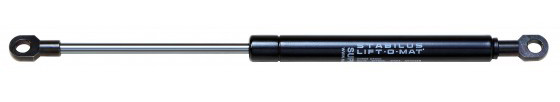

Dynamic damping nitrogen cylinder STABILUS LIFT-O-MAT-DD

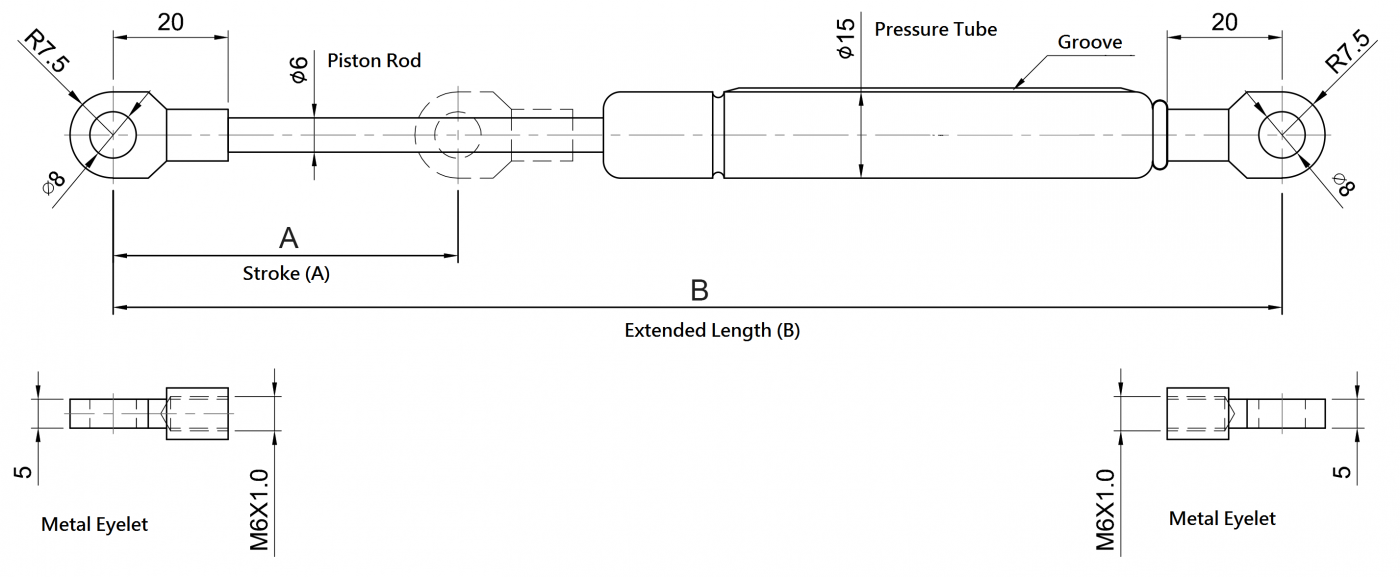

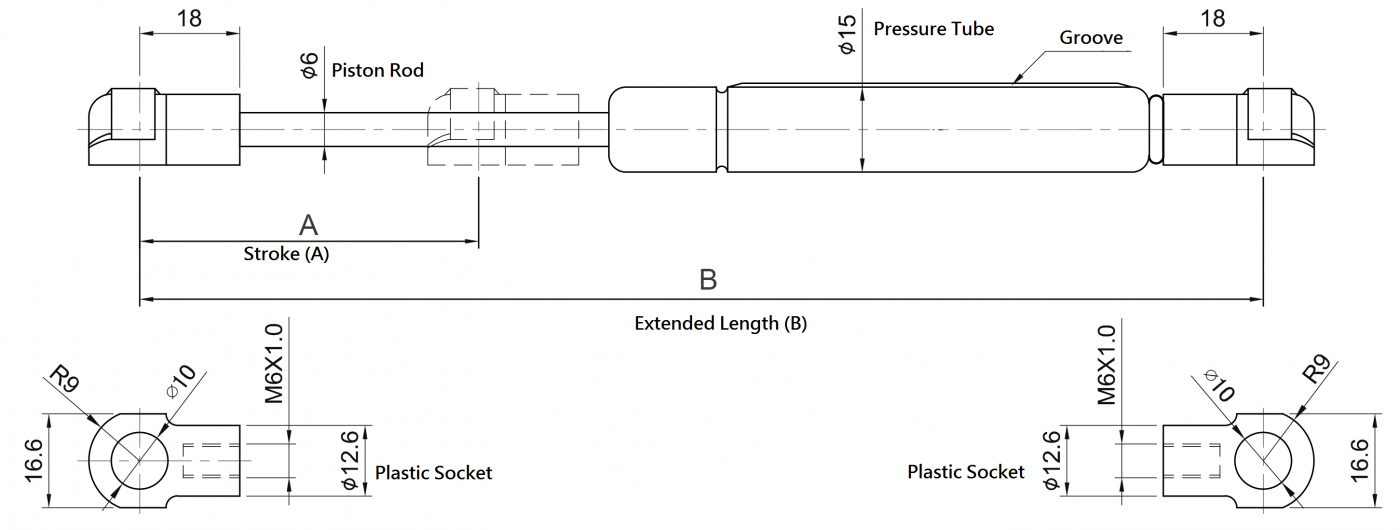

Product specifications: Axis end outer diameter 6mm/Outer tube end outer diameter 15mm

Material: General carbon steel nitriding axis/Operating temperature:- 30°C~80°C

Surface treatment: Axis: Nitriding dyed black/Outer tube: Black baked paint

Length unit: mm/Pressure unit: 1 kg=9.8 (N) Newton=2.2 lbs pounds

Inquiry and ordering instructions:

※1.When ordering or inquiring about nitrogen cylinders, please inform us of the product part number and required pressure F1: (N Newton or kg kg) Product pressure customization

※2. When ordering or inquiring, please clearly state your requirements: a. quantity b. usage environment c. purpose of use, such as maintenance or new institution design

Installation precautions:

1.When the nitrogen cylinder is installed on the mechanism door panel and deployed to the highest point, it is recommended to install the nitrogen cylinder with the pipe end facing upwards and the axis end facing downwards

2.When compressing the nitrogen cylinder, at least 5-10mm should be reserved for effective stroke operation to prevent damage caused by the impact of the axial end joint on the nitrogen cylinder body

3.When fixing the nitrogen cylinder to the upper and lower support points, it is necessary to keep it as vertical as possible to avoid installation deviation that may affect its service life

4. For other details, please refer to the installation precautions for nitrogen cylinders in our company's website product technical information

5. For bolts or sheet metal fittings that fix the two ends of the nitrogen cylinder to the mechanism or door panel, please refer to our company's website (nitrogen cylinder specific bolts and fittings) for selection. For special requirements, please contact our business personnel

The STABILUS free type - Dynamic Gas Spring cylinder has support and thrust functions, but does not have positioning function. It is filled with nitrogen gas of appropriate pressure inside, so that the pressure rod generates a reaction force when compressed. This reaction force can be used to support or offset the heavy load on the pressure rod. It also uses the internal oil volume of the cylinder body, the size of the piston hole, and the "special oil groove design" inside the pipe to produce bidirectional full range dynamic damping effect. At the end of the fully extended pressure rod, there will be a deceleration function to ensure the safety of the operator. This product is widely used in the global automotive industry.

This product is produced in cooperation between Husheng and German STABILUS technology, and is currently the only certified product in the Taiwanese industry that can be supplied to industrial and vehicle manufacturers for use.

Product Features:

1. The Dynamic Gas Spring has no installation direction restrictions, and the nitrogen cylinder extends smoothly and is easy to install.

2.The entire extension process from the nitrogen cylinder to the end has a buffering effect, which can better protect the wear of the designed mechanism's sheet metal and hinge than traditional general gas springs.

3. The damping effect is not affected by the installation direction, as the nitrogen cylinder extends smoothly and has a deceleration function at the end, making the operator safer.

Applicable business category:

Dynamic damping (nitrogen cylinder) is applied to the lifting of doors and covers in automation equipment, especially in sheet metal industrial box lifting doors, automobile engine hood and tailgate lifting, furniture, kitchen cabinets, electronic equipment, lifting doors, industrial machinery, tool machine lifting doors, etc.
