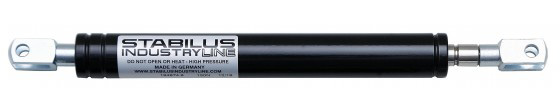

SUPERSEN Tension spring is high quality, high stability. OEM by STABILUS INDUSTRY LINE Germany.
This tension gas spring is work in the opposite way as gas spring. Provided on any desired tension or auxiliary function of the mechanical structure of the door sheet structure.
The special structure in the cylinder, the piston rod is pulled toward the inside through the gas pressure in the cylinder. When the tension gas spring does not have any load, the piston rod is always compressed.
Advantages
►Provides the opposite direction of the gas spring.

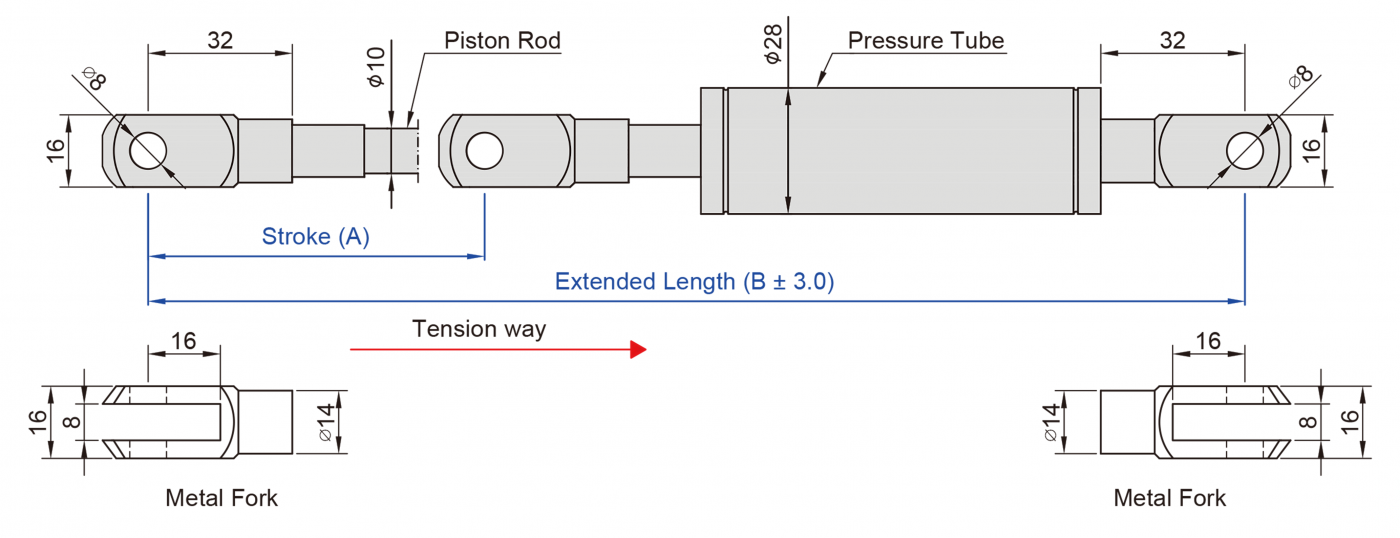

Z1028-U6 Eyelet (Hole 8mm)Select Spec.
Unit：mm
9.8 Newton(N)=1 Kg=2.2 LBS
| Model No. | Stroke (A) | Extended Length (B) | Force Range (N) | Weight (g) | Remark |
| Z28-364-U6-XXXN | 100 | 364 | 150~1200N | ||
| Z28-464-U6-XXXN | 150 | 464 | 150~1200N | ||
| Z28-564-U6-XXXN | 200 | 564 | 150~1200N | ||
| Z28-664-U6-XXXN | 250 | 664 | 150~1200N | ||
| Z28-764-U6-XXXN | 300 | 764 | 150~1200N |
Applicable accessories： Can be paired with U-shaped iron clip
Remarks:
1. This specification can be adjusted for boost/buck force.
Z1028-L508 Eyelet (Hole 8mm)Select Spec.
Unit：mm
9.8 Newton(N)=1 Kg=2.2 LBS
| Model No. | Stroke (A) | Extended Length (B) | Force Range (N) | Weight (g) | Remark |
| Z28-340-L508-XXXN | 100 | 340 | 150~1200N | ||
| Z28-440-L508-XXXN | 150 | 440 | 150~1200N | ||
| Z28-540-L508-XXXN | 200 | 540 | 150~1200N | ||
| Z28-640-L508-XXXN | 250 | 640 | 150~1200N | ||
| Z28-740-L508-XXXN | 300 | 740 | 150~1200N |
Applicable accessories ： BKT-13
Remarks:
1. This specification can be adjusted for boost/buck force.
