SUPERSEN-10/22 Freestyle Condom Tube Nitrogen Cylinder

Please pay attention to the stroke length when installing the stainless steel safety tube nitrogen cylinder of this product

To avoid the impact of the tube end on the shrapnel during compression, which may cause the shrapnel to fall off and damage the nitrogen cylinder body, and affect its service life, the SUPERSEN Stainless Gas Spring Free Type Safety series basically operates on the same principle as a general free type pressure rod (nitrogen cylinder), mainly by installing a sleeve and spring outside the axial end stroke to prevent the pressure rod from failing or the supported mechanism from being subjected to other external forces or sudden gusts of wind, which may cause the pressure rod to close instantly and pose a danger; Air pressure rods are commonly used in outdoor dining cars, coffee carts, engine covers of overhead cranes, outdoor doors and windows, yachts, electronic devices, etc.

The safety sleeve is made of SUS 316 stainless steel material and plastic buttons.

Remarks:

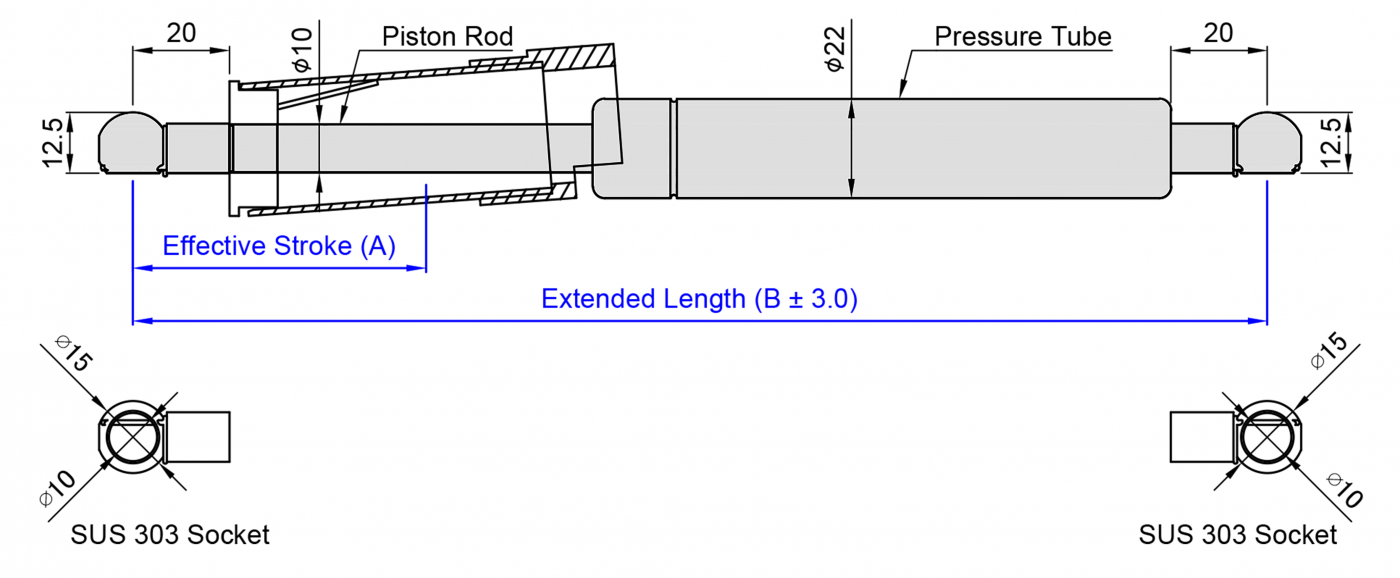

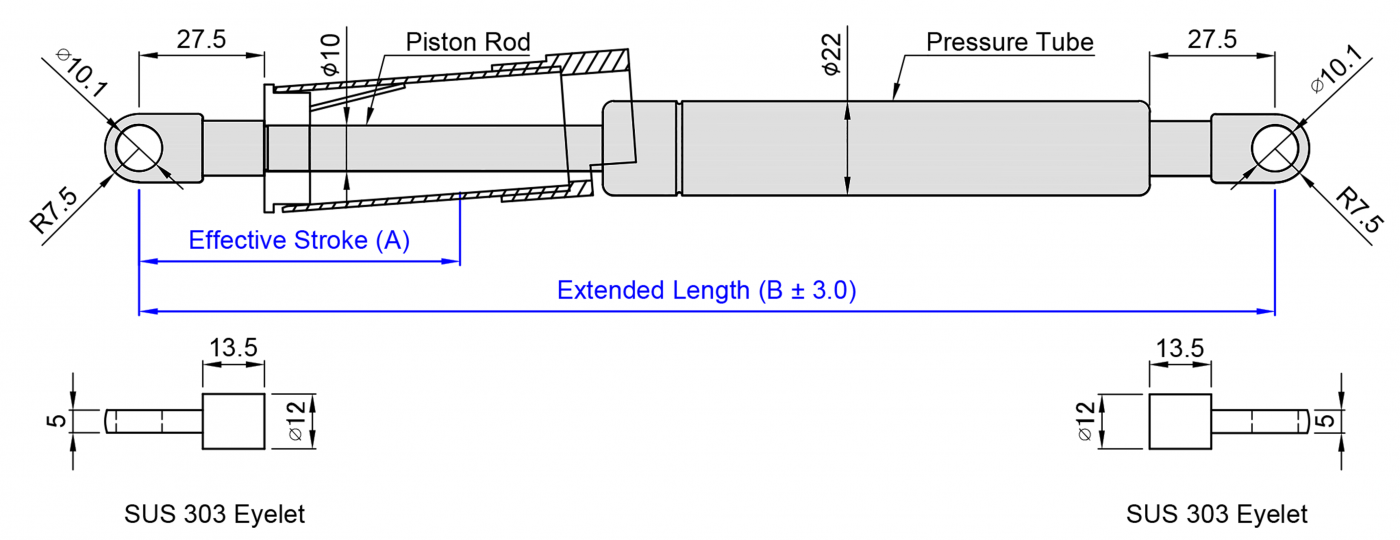

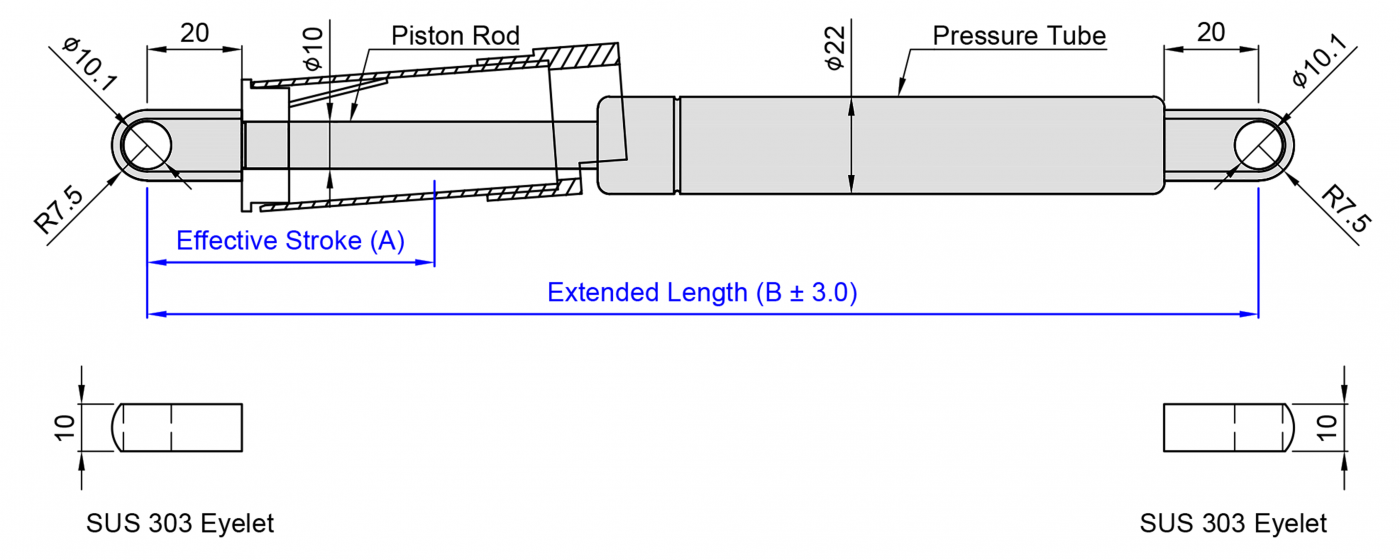

1. SUPERSEN Free Stainless Steel Safety Switch Nitrogen Cylinder Pressure Rod 1022 Series refers to a nitrogen cylinder with an axis diameter of 10mm and an outer tube diameter of 22mm, and a sleeve ring is added to the outside of the piston rod to increase safety. Its pressure medium is nitrogen gas (N2), The damping medium is hydraulic oil (OIL), suitable for temperatures ranging from -20 ° C to+80 ° C, with an allowable length tolerance range of ± 2mm.

2. When inquiring, please inform the customer of the required pressure F1 (N) for the nitrogen cylinder, which is 9.8 Newton (N)=1 kilogram (KG)=2.2 pounds (LBS/length unit (mm))

3. If you need more product information, please feel free to contact our business department by phone or refer to our website.
