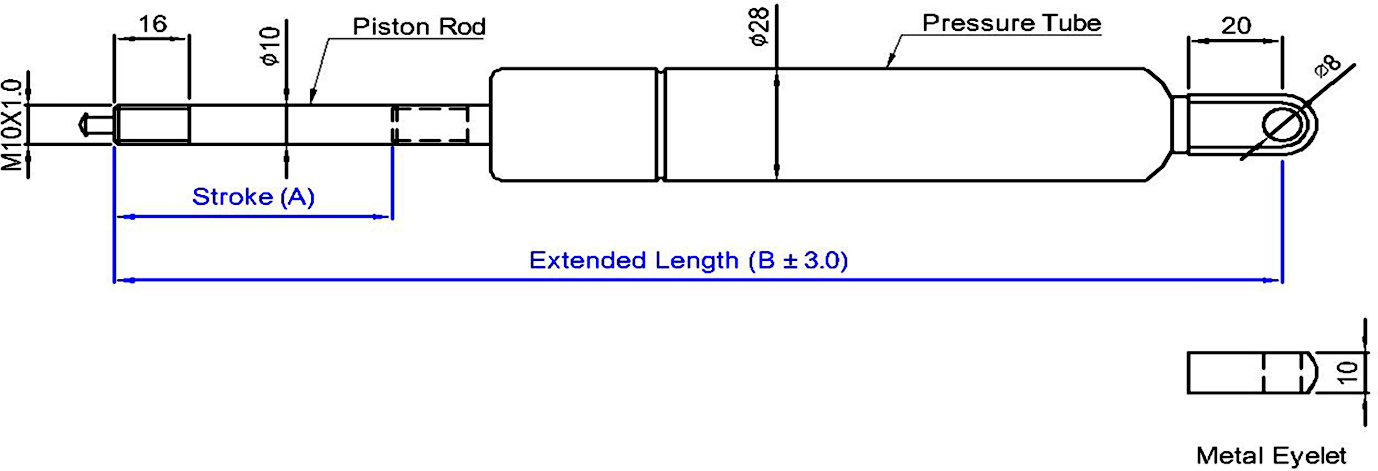

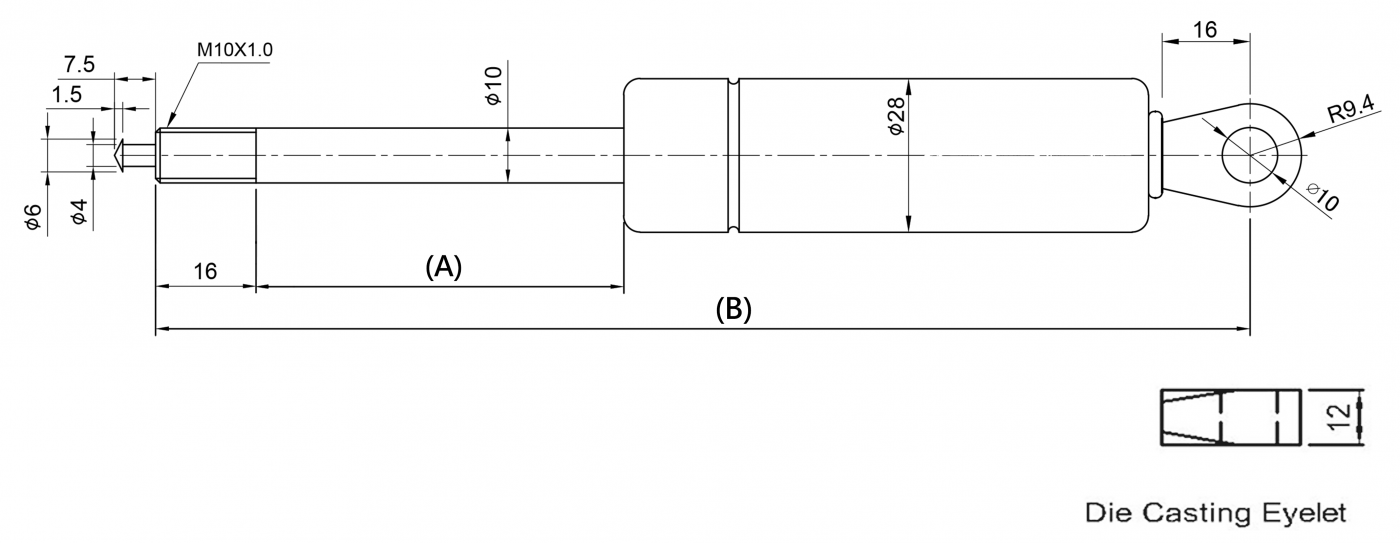

BOL-M10D3 Eyelet
Unit：mm
9.8 Newton(N)=1 Kg=2.2 LBS
| Model No. | Stroke (A) | Extended Length (B) | Force Range (N) | Weight (g) | Remark |
| BOL-184-M10D3-XXXN | 30 | 184 | 200~1200N | ||
| BOL-203-M10D3-XXXN | 40 | 203 | 200~1200N | ||
| BOL-244-M10D3-XXXN | 60 | 244 | 200~1200N | ||
| BOL-285-M10D3-XXXN | 80 | 285 | 200~1200N | ||
| BOL-326-M10D3-XXXN | 100 | 326 | 200~1200N | ||
| BOL-364-M10D3-XXXN | 120 | 364 | 200~1200N | ||
| BOL-446-M10D3-XXXN | 160 | 446 | 200~1200N | ||
| BOL-525-M10D3-XXXN | 200 | 525 | 200~1200N | ||
| BOL-626-M10D3-XXXN | 250 | 626 | 200~1200N | ||
| BOL-726-M10D3-XXXN | 300 | 726 | 200~1200N | ||
| BOL-826-M10D3-XXXN | 350 | 826 | 200~1200N | ||
| BOL-926-M10D3-XXXN | 400 | 926 | 200~1200N |
Husheng Enterprise has developed over a hundred products for customers to easily choose from, in order to facilitate the selection of accessories and bolts suitable for both ends of the series of pressure rods (nitrogen cylinders). Customers can also click on the accessories and bolt areas on the website for reference design. Our company suggests using internationally recognized accessories and bolt part numbers as follows：
Shaft end control joint ： STDE-ACC-BOL-130850、switch handle
Sheet metal accessories ： BKT-13
