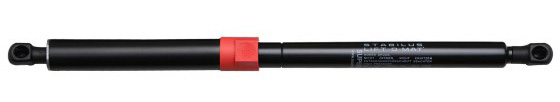

STABILUS LIFT-O-MAT 10/22 Series Condom Tube Nitrogen Cylinder

Please pay attention to the stroke length when installing the safety tube nitrogen cylinder of this product

Avoid the impact of the pipe end on the shrapnel during compression, which may cause the shrapnel to fall off and damage the nitrogen cylinder body, affecting its service life

This series of specifications is commissioned by Taiwan Husheng Enterprise and manufactured by German STABILUS OEM, and assembled by Taiwan SUPERSEN in Taiwan High safety factor, easy installation, and German quality, Taiwan price competitive advantage for global marketing The operating principle of SUPERSEN Free Type Safety series is basically the same as that of a general free type air pressure rod (nitrogen cylinder), mainly by installing a sleeve and spring outside the axial end stroke to avoid the pressure failure of the air pressure rod or the danger caused by the instantaneous closure of the air pressure rod due to other external forces or gusts of wind on the supported mechanism; Air pressure rods are commonly used in outdoor dining cars, coffee carts, engine covers of overhead cranes, outdoor doors and windows, electronic devices, etc.

Remarks:

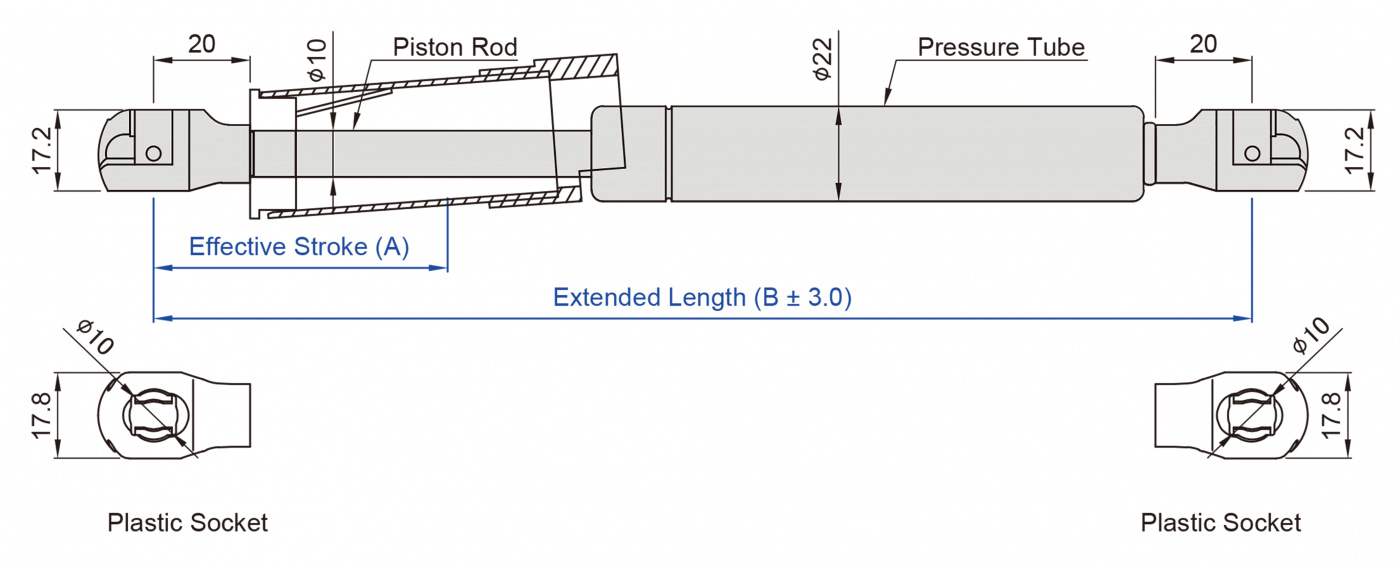

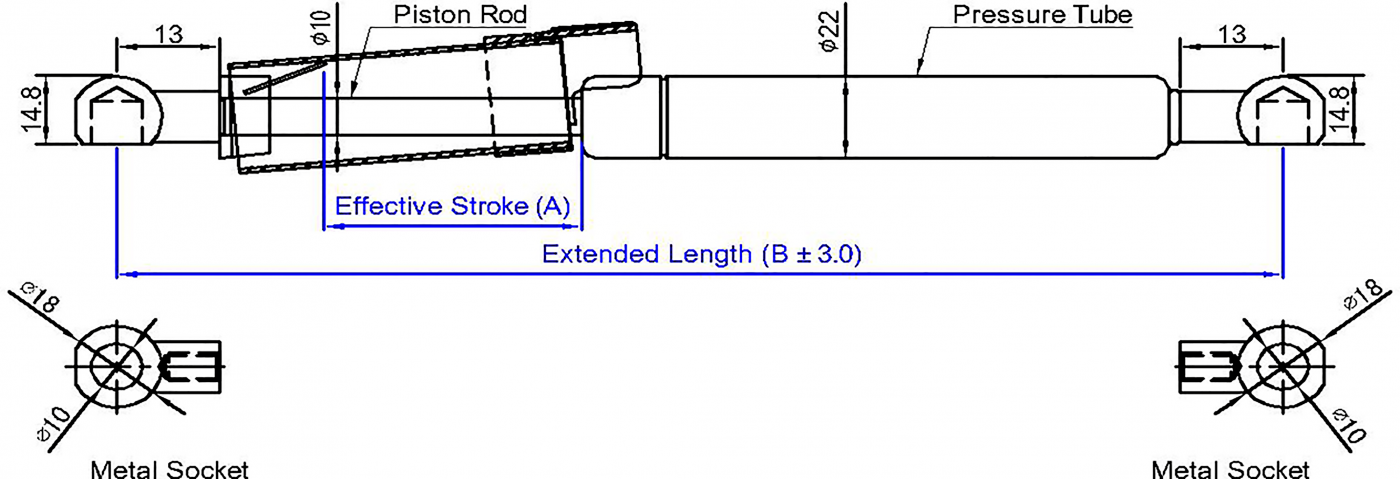

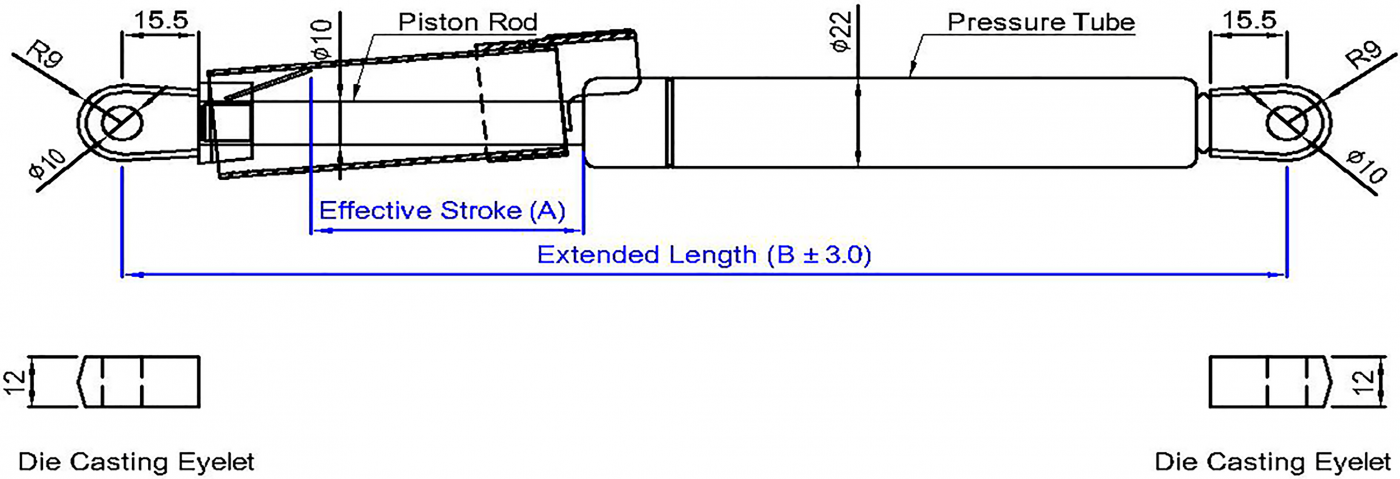

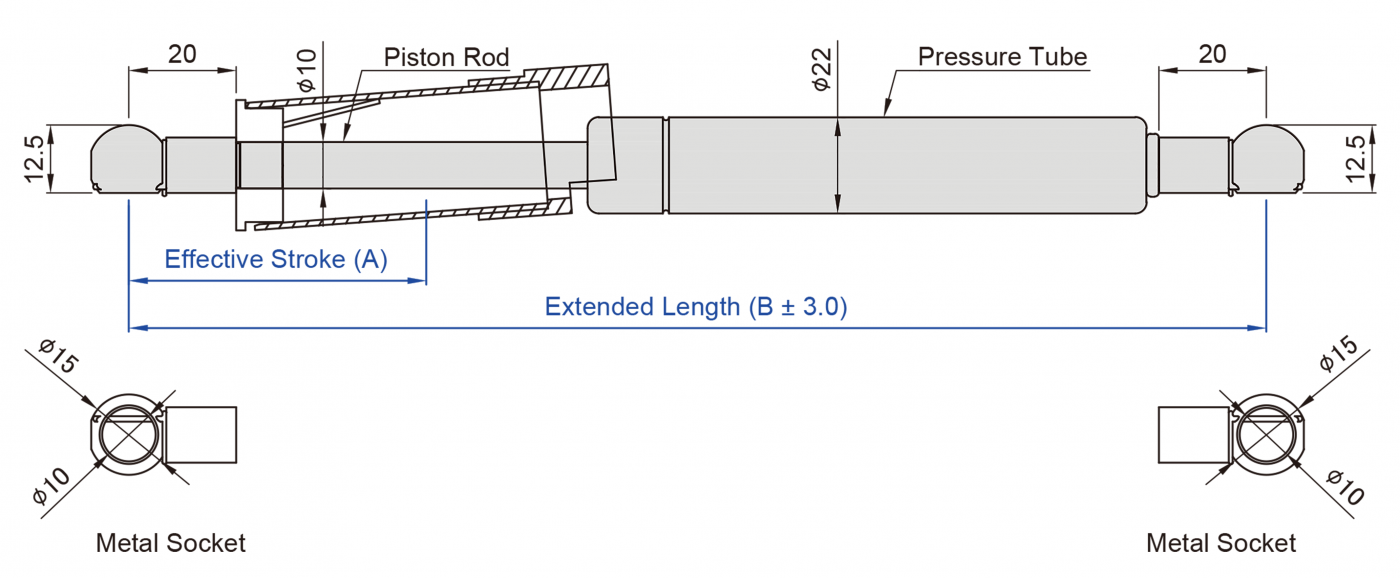

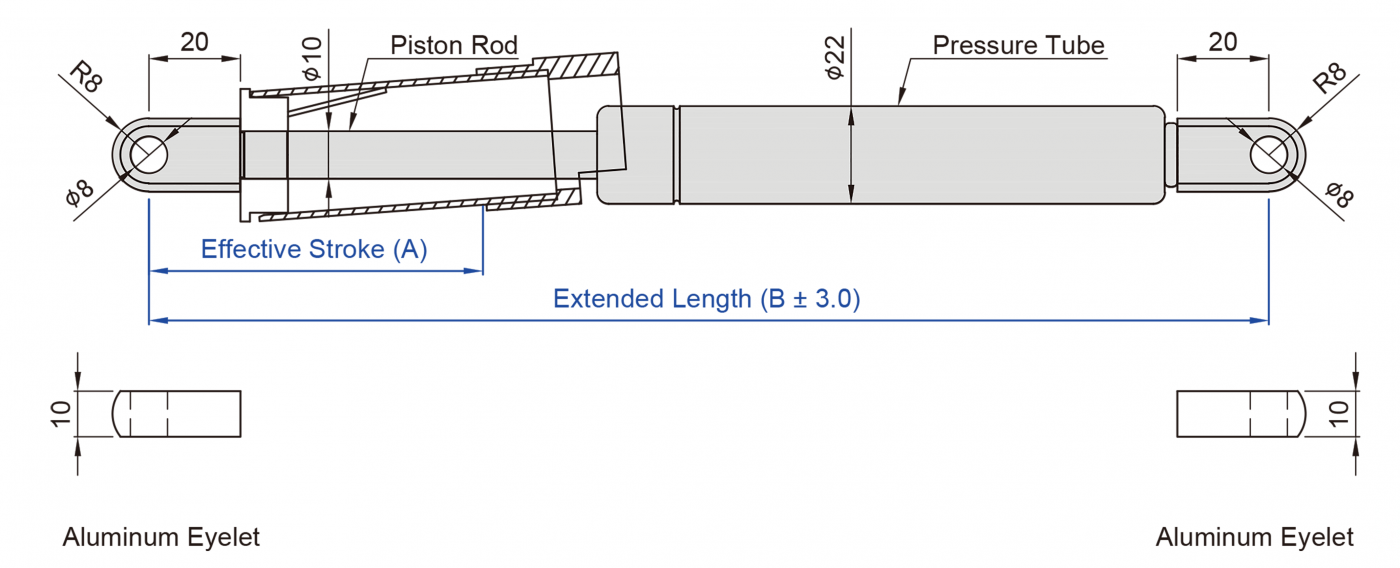

1. The SUPERSEN free type safety switch nitrogen cylinder pressure rod 1022 series refers to a nitrogen cylinder with an axis diameter of 10mm and an outer tube diameter of 22mm, which is equipped with a sleeve ring on the outside of the piston rod to increase safety. Its pressure medium is nitrogen gas (N2), The damping medium is hydraulic oil (OIL), suitable for temperatures ranging from -30 ° C to+80 ° C, with an allowable length tolerance range of ± 2mm.

2. Please inform the customer of the required pressure F1 (N) for the nitrogen cylinder when inquiring: (9.8 Newton (N)=1 kilogram (KG)=2.2 pounds (LBS)/length unit (mm))

3. If you need more product information, please feel free to contact our business department by phone or refer to our website
