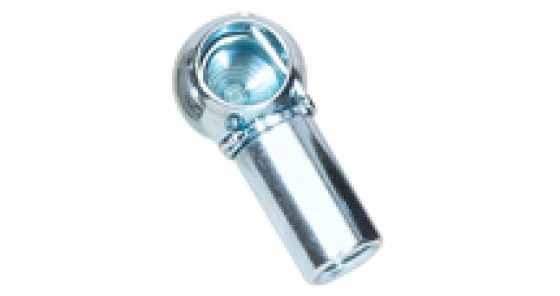

C13 SERIES (Hole Dia. 8mm)
Unit:mm

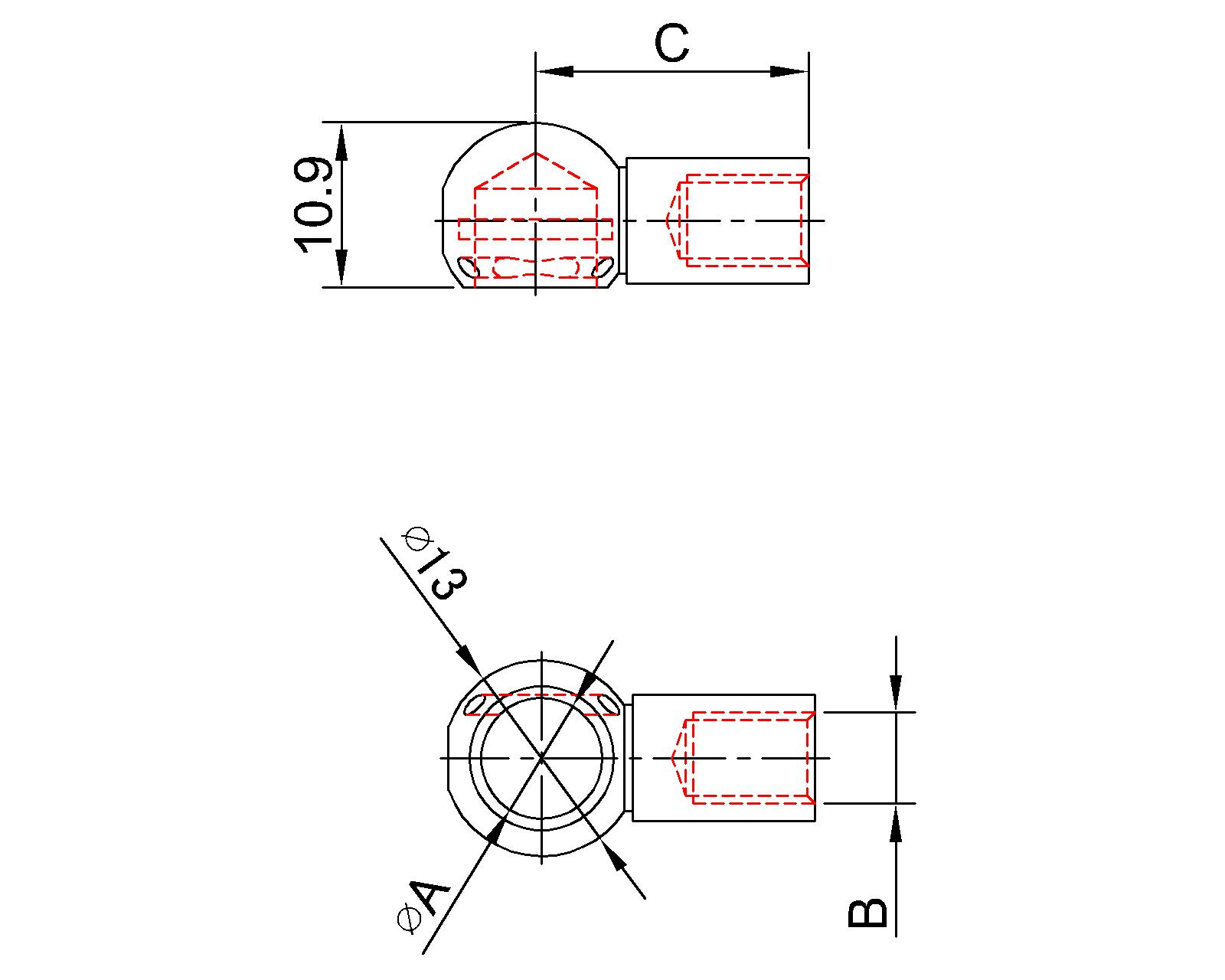

| Model No. | Hole Dia ( ∅A ) | Thread( B ) | Hole Center To End ( C ) | Material | Surface Treatment | Weight (g) |
| C1315M4 ZINC | 8 | M4X0.7 | 15 | 12L14 | White Zinc Plated | |
| C1318M4 ZINC | 18 | |||||
| C1320M4 ZINC | 20 | |||||
| C13S15M4 SUS303 | 15 | SUS303 | Vibratory Grinding | |||
| C13S18M4 SUS303 | 18 | |||||
| C13S20M4 SUS303 | 20 | |||||
| C1315M5 ZINC | M5X0.8 | 15 | 12L14 | White Zinc Plated | ||
| C1318M5 ZINC | 18 | |||||
| C1320M5 ZINC | 20 | |||||
| C13S15M5 SUS303 | 15 | SUS303 | Vibratory Grinding | |||
| C13S18M5 SUS303 | 18 | |||||
| C13S20M5 SUS303 | 20 | |||||
| C1315M6 ZINC | M6X1.0 | 15 | 12L14 | White Zinc Plated | ||
| C1318M6 ZINC | 18 | |||||
| C1320M6 ZINC | 20 | |||||
| C13S15M6 SUS303 | 15 | SUS303 | Vibratory Grinding | |||
| C13S18M6 SUS303 | 18 | |||||
| C13S20M6 SUS303 | 20 |
