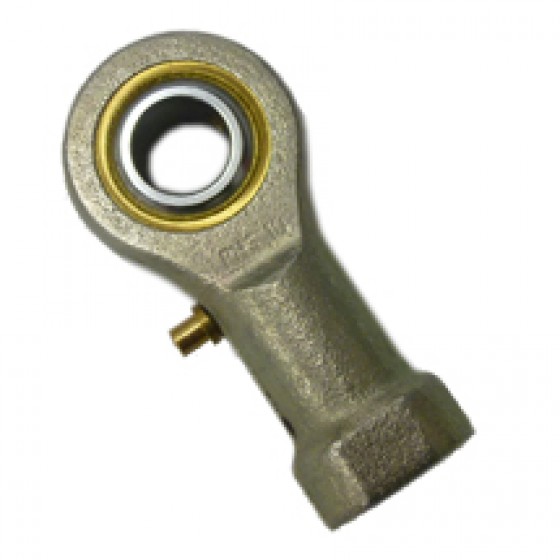

PILLOBALL Rod Ends
Unit:mm

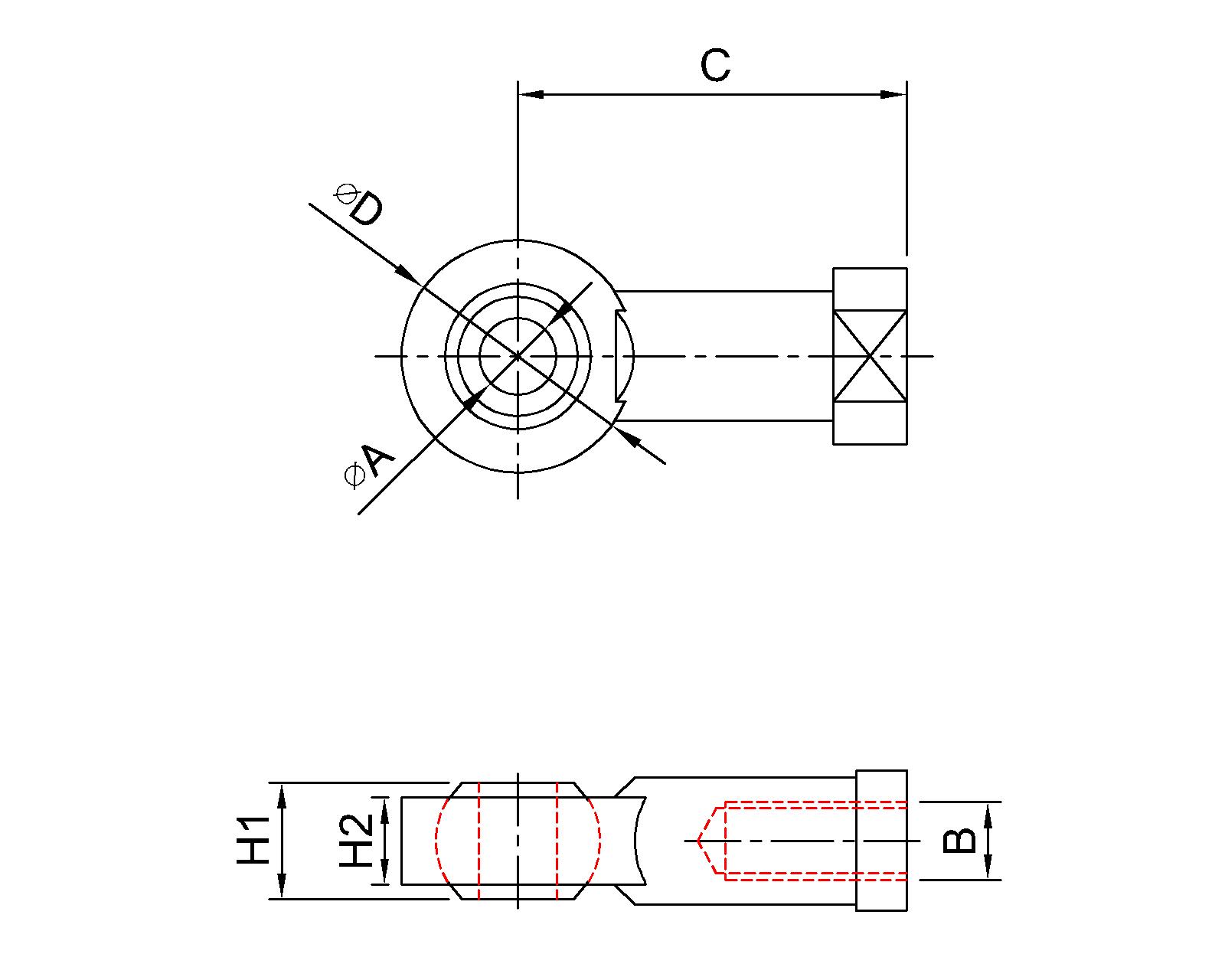

| Model No. | Hole Dia （ ∅A） | ∅D | H1 | H2 | C | Thread（ B） | Material | Weight (g) |
| PHS 6EC | 6 | 18 | 9 | 6.7 | 30 | M6X1.0 | Zinc Alloy | |
| PHS 8EC | 8 | 22 | 12 | 9 | 36 | M8X1.25 | ||
| PHS 10EC | 10 | 26 | 14 | 10.5 | 43 | M10X1.5 | ||
| PHS14-SI14-1T/K | 14 | 37.8 | 19 | 13.5 | 57 | M14X1.5 | Zinc Alloy |
