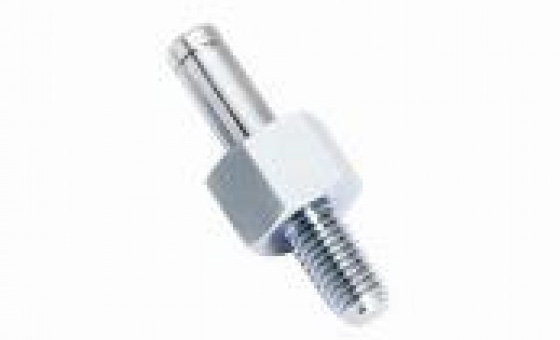

SW6411(HEX)
Unit:mm
suitable for thick 10~12mm and dia. 8mm gas spring connection

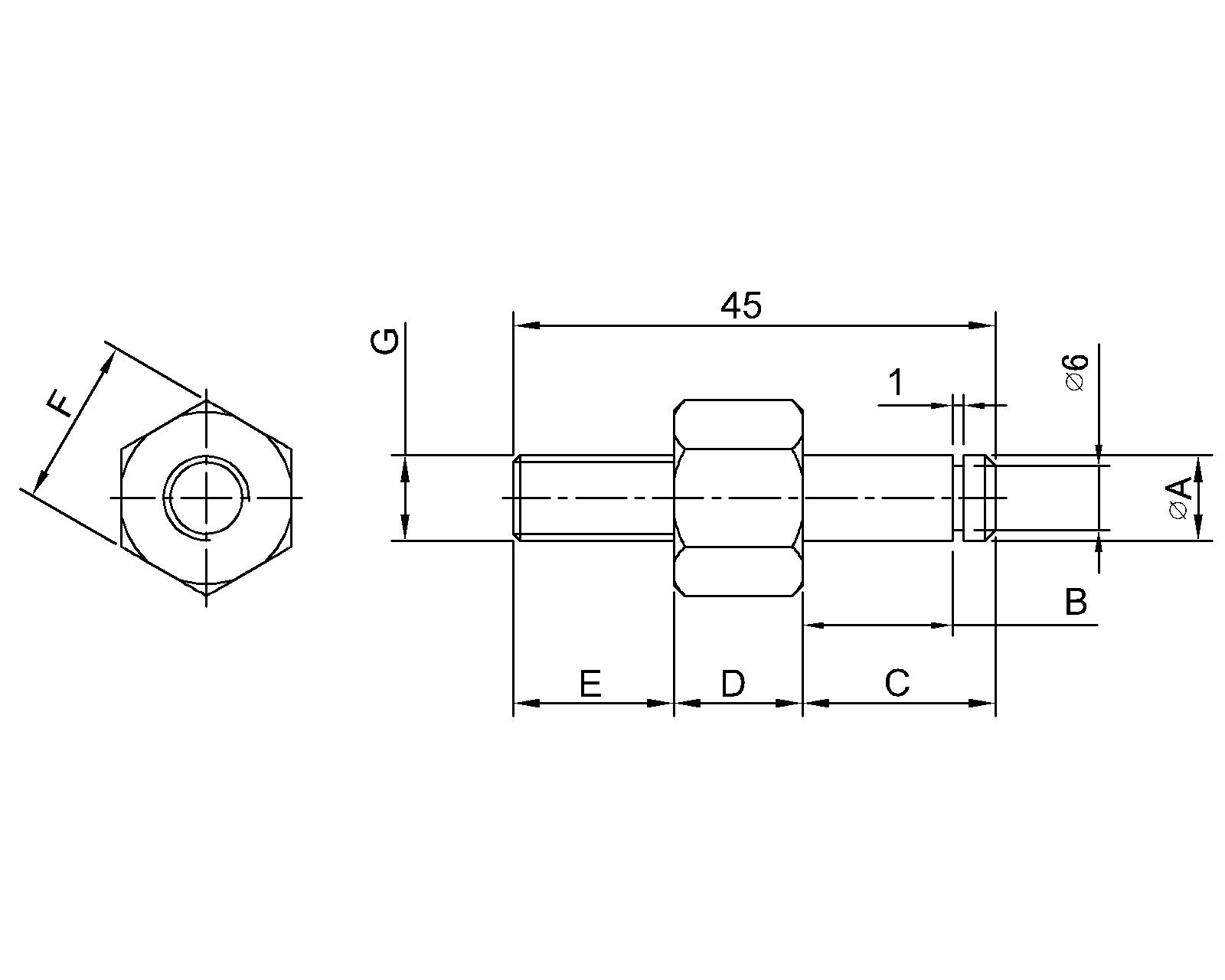

| Model No. | BOLT Dia( A ) | B | C | D | E | F | Thread ( G ) | Material | Surface Treatment | Weight (g) |
| SW6411 ZINC | ∅8 | 14 | 18 | 12 | 15 | 15.8 | M8X1.25 | 12L14 | White Zinc Plated |
SW6411(HEX)
Unit:mm
suitable for thick 10~12mm and dia. 8mm gas spring connection
| Model No. | BOLT Dia( A ) | B | C | D | E | F | Thread ( G ) | Material | Surface Treatment | Weight (g) |
| SW6411 ZINC | ∅8 | 14 | 18 | 12 | 15 | 15.8 | M8X1.25 | 12L14 | White Zinc Plated |
