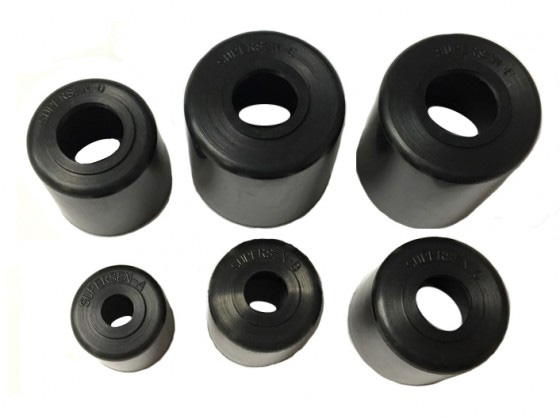

Gas Spring Anti-dust Cover

Supersen related corporation - Taiwan Anken Corporation has developed the 7 series (0615,0818,1022,1222,1227,1228,1428) gas spring rubber anti-dust cover model on Jan.,25,2013.

This new gas spring rubber anti-dust cover features on the first single trench but double-contact surfaces design.It has significant anti-dust and oil removal effect.

It's widely applied to the electronic equipment and the dirty working environment.

Namely the new gas spring rubber anti-dust cover can magically avoid the dust during the gas spring operation and extend the gas spring lifetime.

Inquiry are welcome.

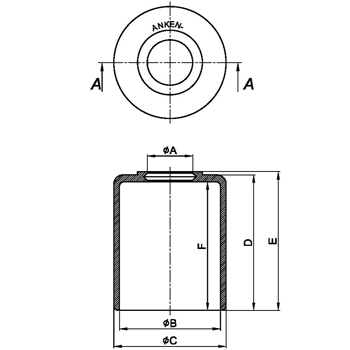

Model No.	φA	φB	φC	D	E	F	Piston Rod Dia.	Tube Dia.
RB-0615-23	5.8	14.8	17.2	22.3	23	20.8	6 mm	15 mm
RB-0818-30	7.8	17.8	20.2	29.3	30	27.8	8 mm	18 mm
RB-1022-30	9.8	21.8	24.2	29.3	30	27.8	10 mm	22 mm
RB-1222-30	12.3	21.8	24.2	29.3	30	27.8	12.5 mm	22 mm
RB-1227-35	12.3	27.2	30.2	34.3	35	32.8	12.5 mm	27.4 mm
RB-1228-35	12.3	27.8	30.2	34.3	35	32.8	12.5 mm	28 mm
RB-1428-35	13.8	27.8	30.2	34.3	35	32.8	14 mm	28 mm
